Laser welding technology has revolutionized the manufacturing industry, offering precise and efficient solutions to join materials with minimal heat-affected zones and exceptional quality. Guangdong Pudian Automation Technology Co., Ltd., a global leader in welding automation solutions, has been at the forefront of innovation in this field since 2006. We specialize in providing cutting-edge laser welding machines that cater to a wide range of industries, including automotive, aerospace, electronics, and medical device manufacturing. In this article, we will explore how a laser welding machine works, breaking down its complex processes and highlighting the precision that makes it an indispensable tool in modern manufacturing.
Laser welding uses focused light energy to melt and fuse materials, creating a high-strength bond between them. Unlike traditional welding methods such as MIG or TIG welding, which rely on the heat generated by electrical arcs or flames, laser welding uses the concentrated energy of a laser beam. This makes it ideal for tasks requiring high precision and minimal thermal distortion, such as welding small components or materials sensitive to heat.
The main advantage of laser welding is its ability to focus energy on a very small area, allowing for fine-tuned control over the weld. This is particularly beneficial in industries where precision is critical, like electronics and medical devices, where even slight imperfections can result in defective products. At Guangdong Pudian Automation Technology Co., Ltd., we provide advanced laser welding systems that ensure high-speed, precise welding with minimal heat input, improving production efficiency while maintaining top-notch quality.
The laser used in welding machines is created through a complex process that begins with a light source. There are several types of lasers used in welding, including solid-state lasers and fiber lasers. Each type generates light in a unique way, but they all rely on the principle of exciting atoms or molecules in a medium to release photons. These photons are then amplified and directed into a highly concentrated beam of light.
The laser generation process involves several steps:
Laser Medium Excitation: In a solid-state laser, a laser medium (such as a crystal or fiber) is excited by electrical energy or another light source. This excitation causes the atoms or molecules in the medium to emit photons, which are the fundamental particles of light.
Photon Amplification: The emitted photons are amplified as they pass through the laser medium. The process of photon stimulation and amplification increases the intensity of the laser beam.
Beam Direction: The amplified laser beam is directed through a series of mirrors and optical fibers to concentrate it into a small, focused spot.
The relationship between the wavelength and energy of the laser is key to its effectiveness. Shorter wavelengths correspond to higher energy, allowing the laser beam to penetrate deeper into materials, making it effective for welding a wide range of metals. In laser welding machines, the most commonly used wavelengths fall in the infrared spectrum (around 1,000 nm), which provide the ideal balance of energy absorption and beam focus.
To achieve precision welding, the laser beam needs to be focused into a fine point. The focusing of the laser beam is critical for achieving high-quality welds, as it determines how much energy is applied to the material and how concentrated the heat is.
Focusing optics, such as lenses or mirrors, are used to direct and concentrate the laser beam into a small spot, usually ranging from 0.1 mm to 2 mm in diameter. The smaller the focal spot, the more concentrated the energy, which allows for finer precision in welding. For high-precision applications, such as in the electronics industry, a very fine beam focus is necessary to avoid damaging delicate components while still creating a strong weld.
The size of the focus also affects the weld quality. A smaller focus spot results in a more localized heat input, which reduces the risk of overheating or distorting the material. On the other hand, a larger focus spot spreads the heat over a broader area, which may be suitable for thicker materials or for welding larger parts but can result in reduced precision.
Once the laser beam is focused on the material, the energy is absorbed and converted into heat. This localized heating causes the material to reach its melting point, creating a weld pool. The heat energy is transferred directly to the material, which melts at the point of contact, allowing the pieces to fuse together.
One of the critical factors in laser welding is controlling the intensity and duration of the laser pulse to ensure optimal melting. If the laser energy is too high, the material may overheat and burn, while too little energy may result in an incomplete weld. This precision is achieved by fine-tuning the laser parameters, such as pulse duration, frequency, and intensity, based on the material being welded and the desired weld characteristics.
At Guangdong Pudian Automation Technology Co., Ltd., we have developed advanced systems that automatically adjust the laser parameters in real-time, ensuring that the energy is applied just right. This ability to finely control the laser's power helps us achieve high-quality, consistent welds across various materials and thicknesses.
After the laser melts the material, the weld pool needs to cool and solidify to form a strong, durable bond. The cooling process is just as critical as the heating process, as it influences the strength, microstructure, and integrity of the final weld.
Cooling too quickly can result in the formation of brittle welds, while cooling too slowly can lead to distortion or warping of the welded parts. The cooling rate also impacts the size and quality of the weld bead, as faster cooling can lead to smaller grains in the material, resulting in stronger and more resistant welds.
Our laser welding machines incorporate advanced cooling systems that ensure the weld area cools at a controlled rate, maintaining the desired mechanical properties. These systems allow for better management of heat distribution and ensure that the weld bead is of the highest quality, with minimal distortion or defects.
One of the standout features of our laser welding machines is the advanced automation and control systems that guarantee precise welding results. These systems include real-time feedback mechanisms that constantly monitor key welding parameters such as temperature, beam alignment, and weld pool size. Using sensors, the machines can make adjustments on the fly, ensuring that the welding process remains accurate throughout the entire operation.
Automated control systems play a vital role in improving welding precision. These systems can be programmed to perform complex welding patterns, adjust laser settings in real-time, and detect any anomalies during the welding process. This level of control ensures that every weld is performed consistently, regardless of the complexity or scale of the job.
At Guangdong Pudian Automation Technology Co., Ltd., our laser welding machines are equipped with some of the most advanced sensors and control systems available, enabling our customers to achieve exceptional precision and high-quality welds every time.
At Guangdong Pudian Automation Technology Co., Ltd., we are committed to providing our customers with the most reliable, innovative, and efficient welding solutions. With over 18 years of experience in welding automation, we have developed a comprehensive range of laser welding machines that cater to the needs of industries worldwide.

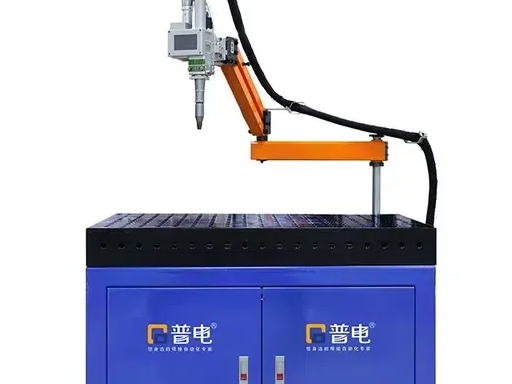

Our advanced laser welding machines are designed to deliver high-speed, high-precision welding with minimal thermal impact, ensuring that your production process remains efficient and cost-effective. Whether you are welding small, intricate components or large industrial parts, our laser welding machines provide the performance and quality you need to stay competitive.
